SY-605-BZ

Product Series:605 Series

Release date:2024-12-06

Inquiry now

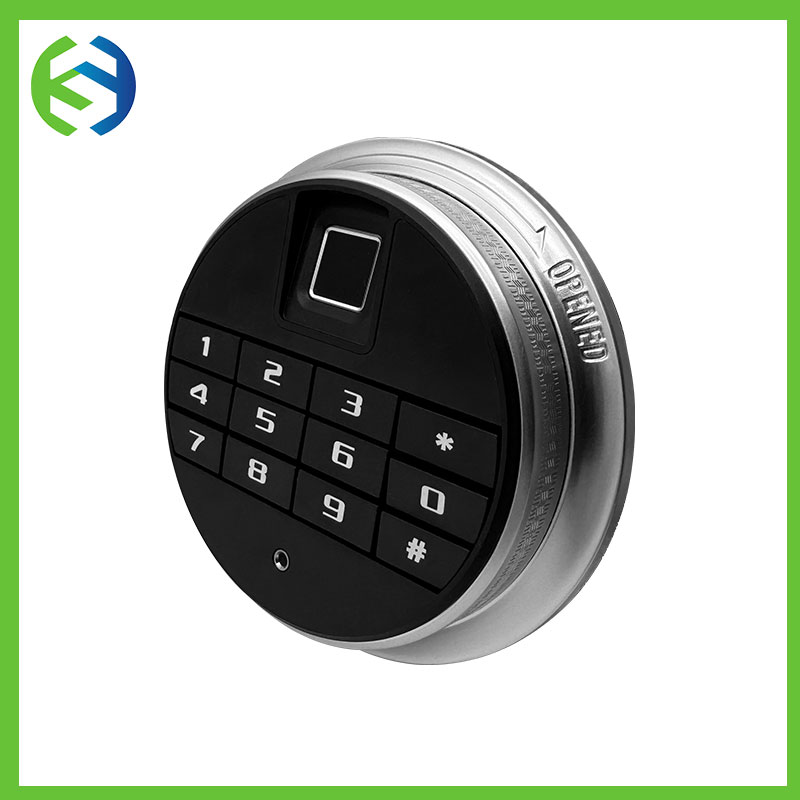

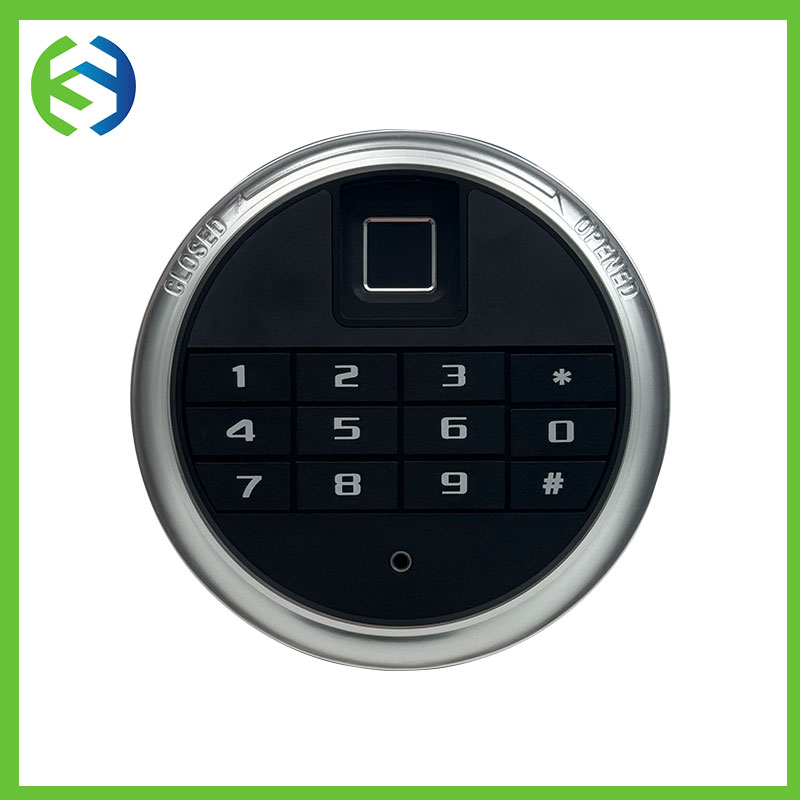

Panel features:

1. Adopting a rotary knob without the need for additional installation, it is aesthetically pleasing and easy to install.

2. Adopting semiconductor fingerprint module, it is safer, more sensitive, has a high recognition rate, and consumes less power.

3. Equipped with password memory function, the power-off password will not be lost.

4. Adopting dual passwords for more flexible use.

5. Equipped with vibration alarm function, undervoltage alarm, and alarm for 3 incorrect password inputs or 5 fingerprint verifications.

6. Support multiple modes of door opening, single authentication mode (fingerprint door opening, password door opening) and dual authentication mode (fingerprint+password door opening) can be freely switched.

7. Support mute function, button sound can be freely turned on or off.



Data parameters:

Working power supply: Four No. 5 "AA" alkaline batteries

Working voltage range: 4.2v~6.38v

Undervoltage point at work: 4.8V ± 0.30V

Working current: ≤ 380mA

Static current: < 25uA

Working temperature:- 10℃~+70℃

Working humidity: 10%~90% RH
