SY-851-S

Product Series:Digital Tube

Release date:2024-12-06

Inquiry now

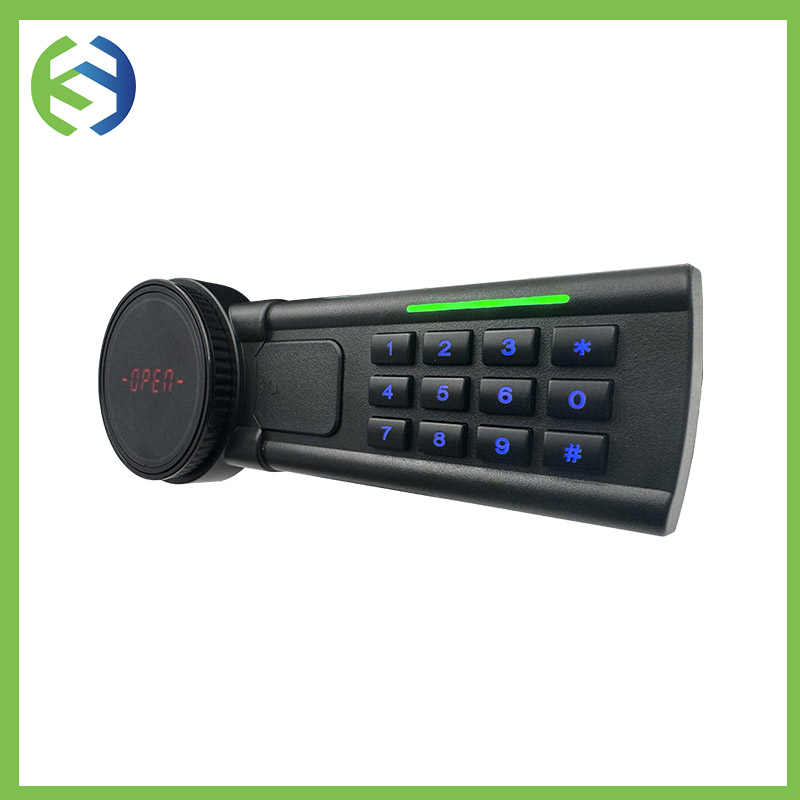

Panel features:

1. Adopting an integrated display window and handle knob, there is no need to install additional knobs, making it aesthetically pleasing and easy to install.

2. The use of LED strip indicator lights is aesthetically pleasing and simple.

3. Equipped with password memory function, the power-off password will not be lost.

4. Adopting dual passwords for more flexible use.

5. Equipped with undervoltage alarm and password input error alarm.

6. Support mute function, button sound can be freely turned on or off.

7. Adopting a 0.3-inch 6-digit digital screen.

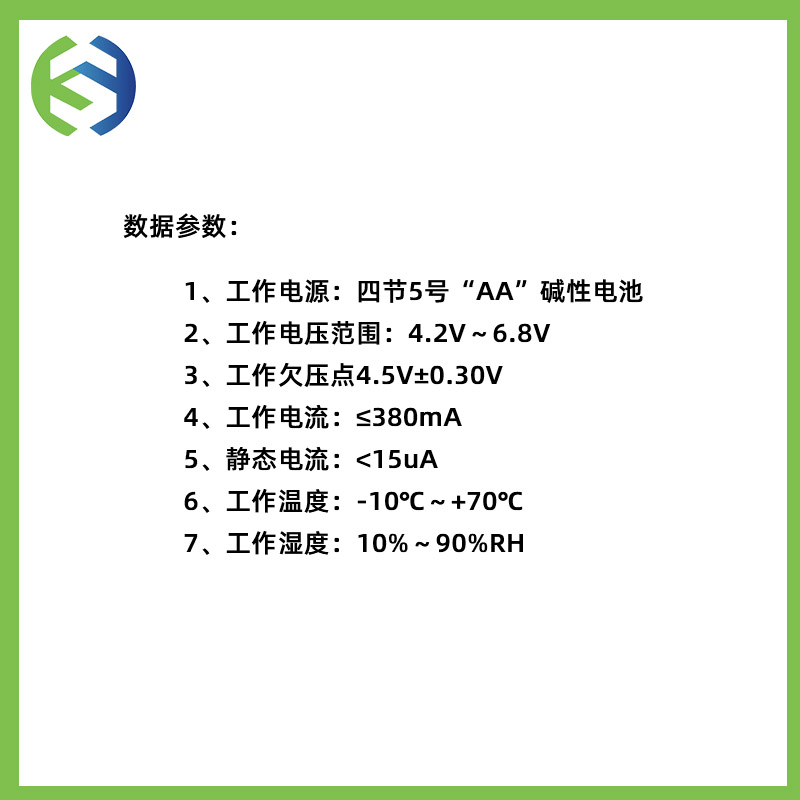

Data parameters:

1. Working power supply: Four No. 5 "AA" alkaline batteries

2. Working voltage range: 4.2V to 6.8V

3. Undervoltage point at work 4.5V ± 0.30V

4. Working current: ≤ 380mA

5. Static current:< 15uA

6. Working temperature:- 10℃~+70℃

7. Working humidity: 10% to 90% RH
