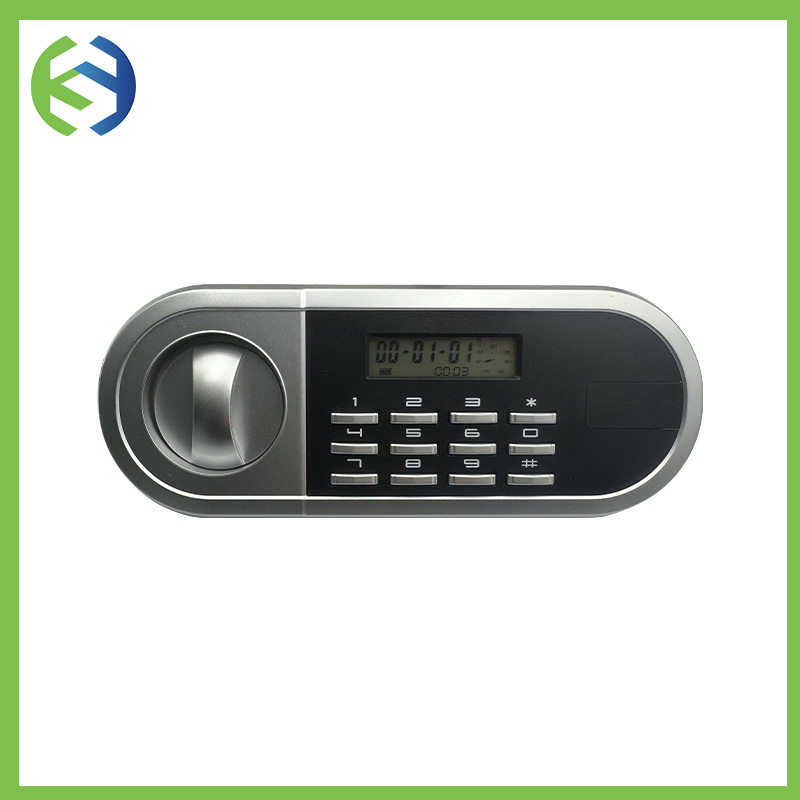

SY-155-1

Product Series:LCD Screen

Release date:2024-12-11

Inquiry now



Panel features:

1. Equipped with password memory function, the power-off password will not be lost.

2. Adopting dual passwords for more flexible use.

3. Equipped with vibration alarm function, undervoltage alarm, and 3 alarms for incorrect password input.

4. Equipped with clock function, displaying time and date.

5. Adopting LCD screen design.

6. Support door opening and closing record query function.

7. Support hidden code function.

8. Supports mute function.

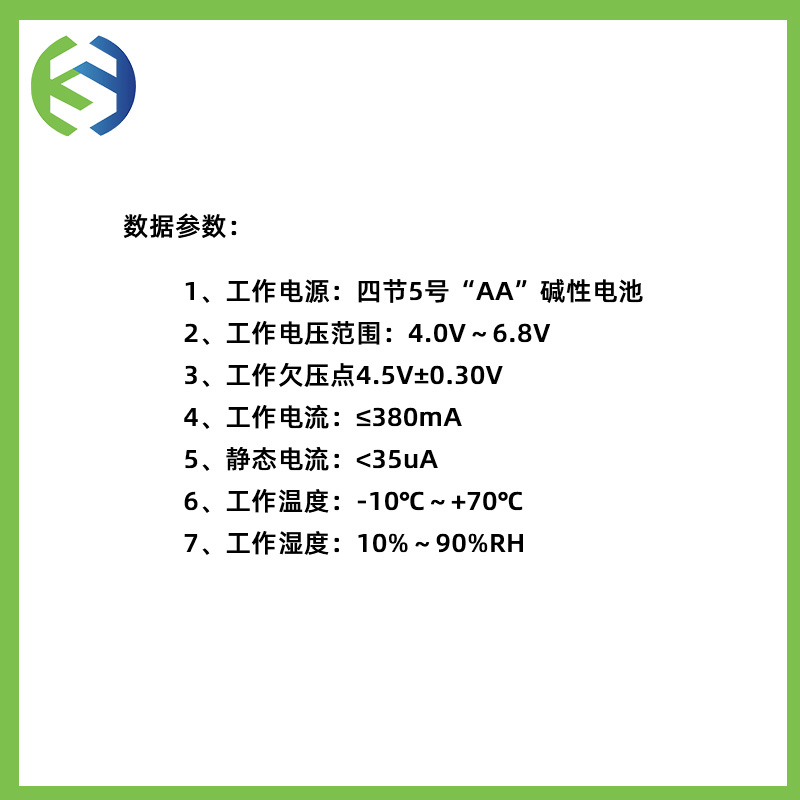

Data parameters:

1. Working power supply: Four No. 5 "AA" alkaline batteries

2. Working voltage range: 4.0V to 6.8V

3. Undervoltage point at work 4.5V ± 0.30V

4. Working current: ≤ 380mA

5. Static current:< 35uA

6. Working temperature:- 10℃~+70℃

7. Working humidity: 10% to 90% RH
