SY-851Z

Product Series:Fingerprint

Release date:2024-12-27

Inquiry now



Panel features:

1. Adopting semiconductor fingerprint module, it is safer, more sensitive, has a high recognition rate, and consumes less power.

2. Adopting an integrated display window and handle knob, there is no need to install additional knobs, making it aesthetically pleasing and easy to install.

3. The use of LED strip indicator lights is aesthetically pleasing and simple.

4. Equipped with password memory function, the power-off password will not be lost.

5. Adopting dual passwords for more flexible use.

6. Equipped with vibration alarm function, undervoltage alarm, and alarm for 3 incorrect password inputs or 5 fingerprint verifications.

7. Support multiple modes of door opening, single authentication mode (fingerprint door opening, password door opening) and dual authentication mode (fingerprint+password door opening) can be freely switched.

8. Support mute function, button sound can be freely turned on or off.

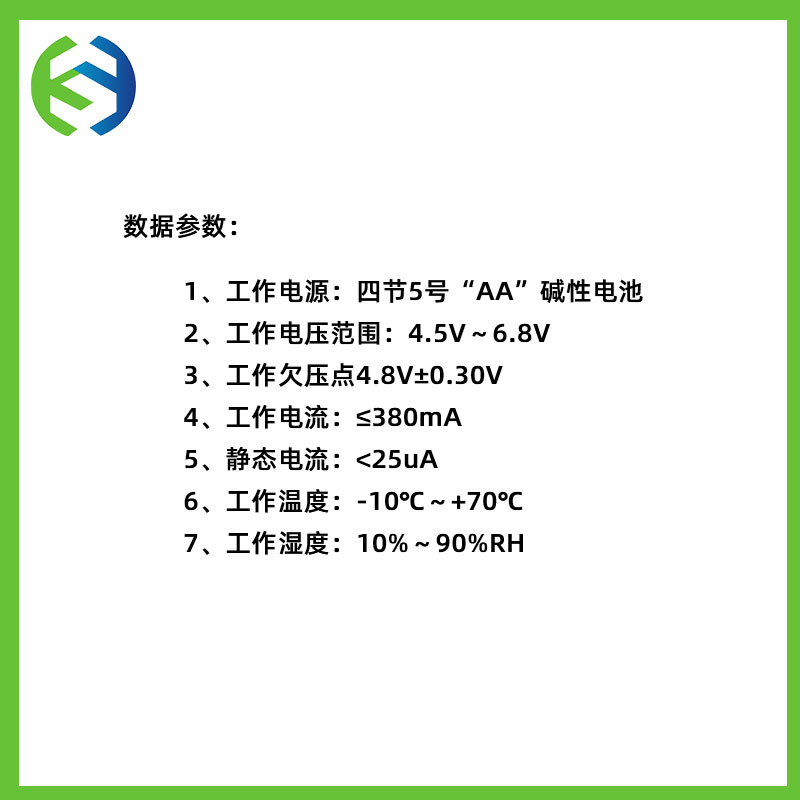

Technical parameters:

1. Working power supply: Four No. 5 "AA" alkaline batteries

2. Working voltage range: 4.5V to 6.8V

3. Undervoltage point at work 4.8V ± 0.30V

4. Working current: ≤ 380mA

5. Static current:< 25uA

6. Working temperature:- 10℃~+70℃

7. Working humidity: 10% to 90% RH
