SY-850

Product Series:Fingerprint

Release date:2024-12-27

Inquiry now



Panel features:

1. Adopting semiconductor fingerprint module, it is safer, more sensitive, has a high recognition rate, and consumes less power.

2. Equipped with password memory function, the power-off password will not be lost.

3. Adopting dual passwords for more flexible use.

4. Equipped with vibration alarm function, undervoltage alarm, and alarm for 3 incorrect password inputs or 5 fingerprint verifications.

5. Support multiple modes of door opening, single authentication mode (fingerprint door opening, password door opening) and dual authentication mode (fingerprint+password door opening) can be freely switched.

6. Support mute function, button sound can be freely turned on or off.

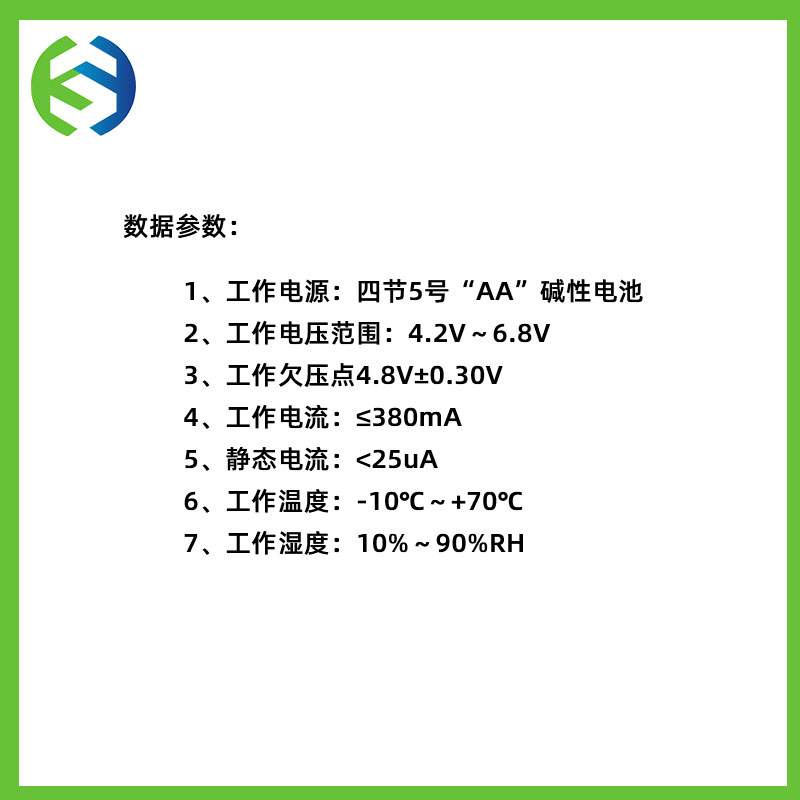

Technical parameters:

1. Working power supply: Four No. 5 "AA" alkaline batteries

2. Working voltage range: 4.5V to 6.8V

3. Undervoltage point at work 4.8V ± 0.30V

4. Working current: ≤ 380mA

5. Static current:< 25uA

6. Working temperature:- 10℃~+70℃

7. Working humidity: 10% to 90% RH
