SY-162

Product Series：Fingerprint

Release date：2024-12-27

Panel features:

1. Equipped with password memory function, the power-off password will not be lost.

2. Equipped with undervoltage alarm.

3. Adopting an external code change design makes password change more convenient.

4. Password 4-8 digits.

5. 32 fingerprints.

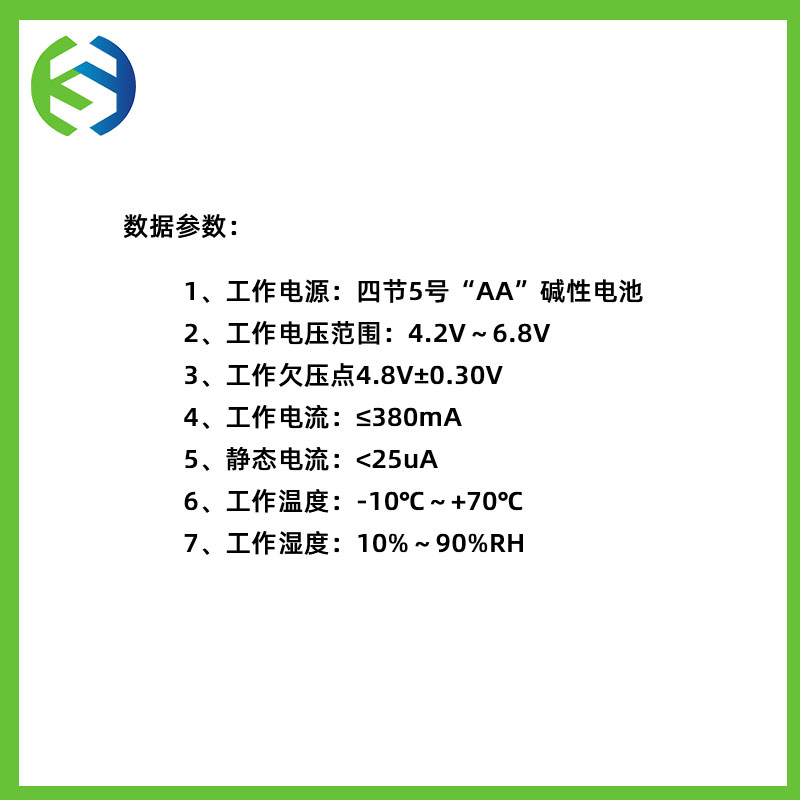

Technical parameters:

1. Working power supply: Four No. 5 "AA" alkaline batteries

2. Working voltage range: 4.2V to 6.8V

3. Undervoltage point at work 4.8V ± 0.30V

4. Working current: ≤ 380mA

5. Static current:< 25uA

6. Working temperature:- 10℃～+70℃

7. Working humidity: 10% to 90% RH
